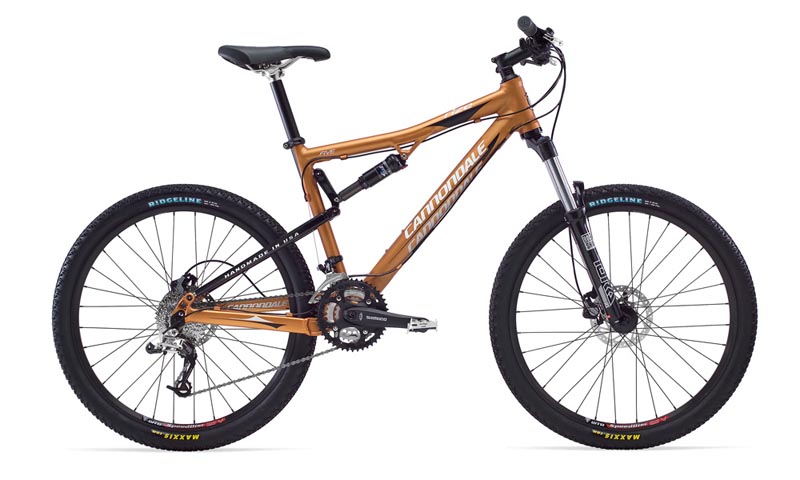

Rize 5
Available Colors: Saffron Metalic (matte) or Jet Black (gloss)
The Rize is the Swiss Army knife of the trail bike world. It's a bike that brings all-new metalforming technology to the industry, and combines it with carbon-fiber fabrication techniques. It uses a dreamy-riding multi-pivot suspension with 130mm of balanced travel. The means that riders can use it as a do-it-all rig, whether you're riding notoriously gnarly rock gardens in the Northeast or the gently rolling foothills of the inter-mountain West.
Backbone Technology
- Industry first 3D forged "BackBone" combines BB30 Si bottom bracket, lower pivot, and double-butted seat tube into a three dimensionally forged part.
- Stronger and stiffer than three separately welded pieces.
- 3D forging process properly aligns grain structure for longer fatigue life.
- One structure assures proper alignment between bottom bracket and pivots.
Specs
Frame: Rize, 130 mm
Fork: RockShox Tora 302 Solo Air, 130 mm
Rear Shock: FOX Float R
Rims: WTB Speed Disc XC, 32h
Hubs: Shimano M475
Spokes: Mach 1
Tires: Maxxis ,Ridgeline, 26 x 2.1"
Pedals: Wellgo alloy cage w/ clip and strap
Crank: Shimano FC-M521, 22/32/44
Chain: Shimano 9-speed
Rear: Cogs Shimano HG50 11-34
Bottom Bracket: Shimano BB-ES25 Octalink
Front Derailleur: Shimano Deore
Rear Derailleur: Sram X-9
Shifters: Sram X-5 Trigger
Handlebars: Cannondale C3, 20 mm rise
Stem: Cannondale XC3 1 1/8", 31.8 mm
Headset: Cannondale Orbit Z 1.5"
Brakeset: Shimano BR-M485 160/160mm
Brakelevers: Shimano BR-M485
Saddle: Cannondale CO2 w/Chromoly rails
Seat Post: Cannondale Alloy
Sizes: S, M, L, X
Extras: Cannondale Morse Grip
